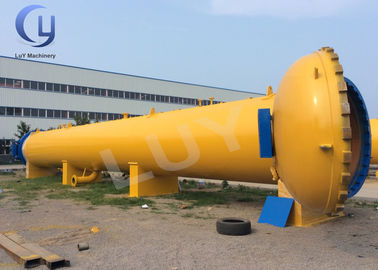

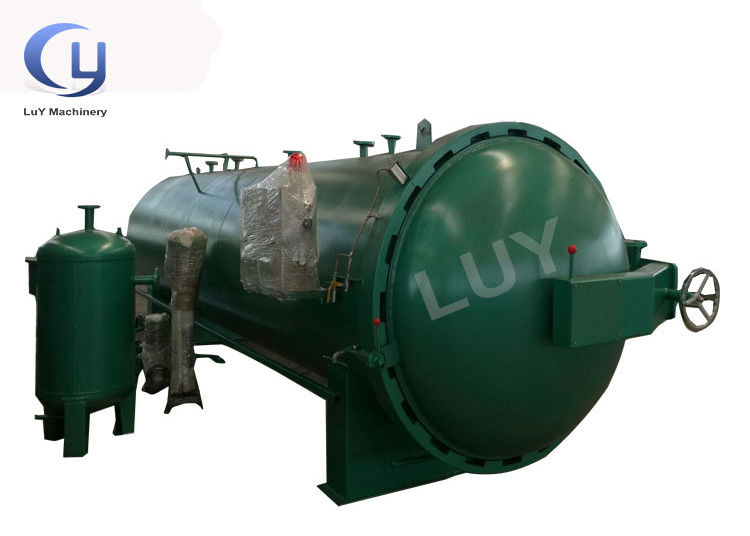

Customized Autoclave Carbon Steel or Stainless Steel

|
| Place of Origin: | China |
| Brand Name: | LUY |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |

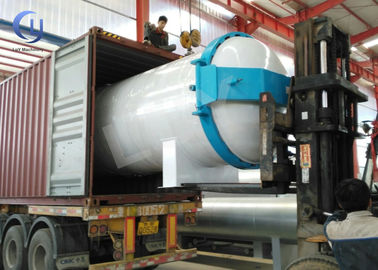

| Packaging Details: | Nude packing, can be shipped by containers or bulk cargo |
| Delivery Time: | Shipped in 35 days after received payment |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 set per year |
| Length: | Can Be Customized | Diameter: | Less Than4.5m |
|---|---|---|---|
| Working Medium: | Water-soluble Chemicilas, Like CCA ACQ Tanalith | Working Principle: | Vacuum Pressure Impregnation Method |
| Treat Capacity: | Can Be Customized | Installation: | Overseas Service Provided |
| Highlight: | timber treatment plant,wood pressure treatment equipment |
||

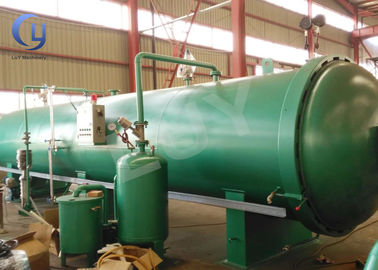

Sold To Uganda Wood Treatment Plant Automatic Control Vacuum With Filter System
Ⅰ Product description
Wood treatment plant mainly used for deep processing of wood, vacuum pressure treatment method, so the wood to achieve anti-corrosion, pest control, and other purposes. This wood treatment plant applied to various water-soluble chemicals such as CCA, ACQ, boric acid, Tanalith E and etc.
Ⅱ Main Model
| Type | Effective Diameter(mm) | Effective Length(mm) | Total capacity(m3) | Effective treat capacity(m3) |
| DN1500*4000 | 1500 | 4000 | 7.0 | 4.7 |
| DN1500*6000 | 1500 | 6000 | 10.6 | 7.0 |
| DN1500*8000 | 1500 | 8000 | 14.1 | 9.4 |
| DN2500*12000 | 2500 | 12000 | 58.8 | 39.2 |
| DN2500*14000 | 2500 | 14000 | 68.6 | 45.7 |
| DN3200*16000 | 3200 | 16000 | 128.6 | 85.7 |
| DN1800*8000 | 1800 | 8000 | 20.3 | 13.5 |
| DN2000*14000 | 2000 | 14000 | 43.9 | 29.3 |
| DN1800*10500 | 1800 | 10500 | 26.7 | 17.8 |
| DN1200*4000 | 1200 | 4000 | 4.5 | 3.0 |
| DN1200*6000 | 1200 | 6000 | 6.7 | 4.5 |
Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.
Ⅲ Technical parameters
Design pressure:1.58MPA
Voltage:can be customized according to users’ needs
Operation medium: various water-soluble agent like CCA ACQ
Operation pressure:1.0-1.4MPA
Material:Q345R carbon steel
Vacuum operation:-0.098MPA
Ⅳ Technology Process
Extract Vacuum---holding vacuum and adding medicament---open the pressurizing pump after reaching the liquid level ---maintain the required pressure to infuse the medicament into the wood cells for a period of time—pressure unloading—discharge Reagents --- Vacuum again --- Restoring atmospheric pressure --- Open the tank door and remove the wood --- Complete
Ⅴ Our advantages
1. Our equipment automatically controls pressure and vacuum,our equipment once reach the pressure or fixed vacuum , the pressure pump or vacuum pump will stop by itself , once lower than the fixed point, the pumps will start working by automatic control system.
For example ,the power of pressure pump is 5.5kw ,for treat one circle ,our pump only work 30-60 mins ,for other company's it will work 120-180mins .
Each day saving much production cost for the users .
2.-- The material of this machine is Q345R steel, is the special steel plate for pressure vessel, we purchase from famous Jinan steel factory.
3. -- Our company has own special flaw detection to ensure the quality of products.
4. -- Regardless of whether it is a vacuum pump, air compressor or pipeline, our configuration is relatively high, and the equipment is highly working efficient, which also saves costs for users.
